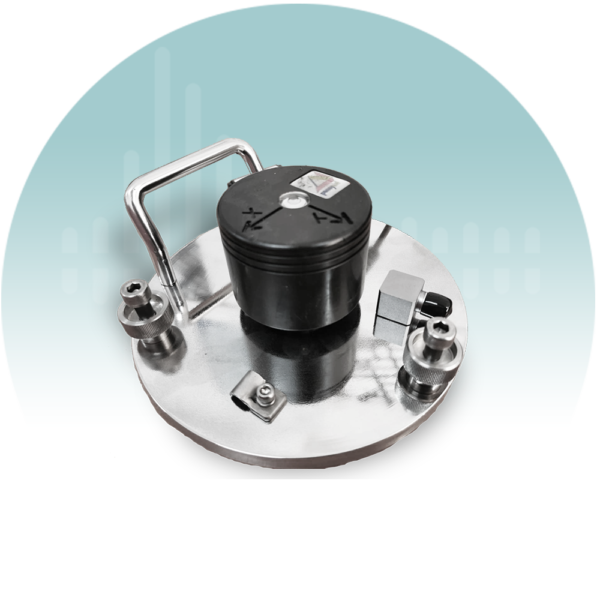

P-AMPL-3 Tripod measuring plate

PLACID P-AMPL-3 Tripod measuring plate

Total weight : (WITHOUT SENSORS) +/- 3 KG
The PLACID P-AMPL-3 accessory item is intended for the measurement of floor vibration in buildings with piezoelectric accelerometers. It was designed according to DIN 45669-2 (Measurement of vibration immission Measuring method).

Download P-AMPL-3 Tripod measuring plate datasheet

Compare

P-AMPL-3 Tripod measuring plate

The PLACID P-AMPL-3 accessory item is intended for the measurement of floor vibration in buildings with piezoelectric accelerometers. It was designed according to DIN 45669-2 (Measurement of vibration immission Measuring method).

TOTAL WEIGHT : (WITHOUT SENSORS) +/- 3 KG

  • Stable and rigid handgrip (4)
  • M10 hole in the middle for the sensor (10)
  • Adjustable feet (8) for leveling with bulls eye spirit level (9)
  • Cable guidance (7)
  • Spike feet (2) for use on soft floor coverings

No                                                                                                      Description

1 Stainless Steel O 190 mm. Thickness 12 mm.
2 Socket Bolt Stainless Adjustable Foot M8 X 60 ( 3X )
3 Knurled nut M8 ( 3X )
4 Handle
5 Socket Bolt Stainless M4 x 10
6 Washer
7 Cable Clip ø 5 mm.
8 Socket Bolt Stainless M5 x 12 ( 2x )
9 Bulls eye spirit level
10 Hole 10 mm.



Please Click and Download this product datasheet for further information
