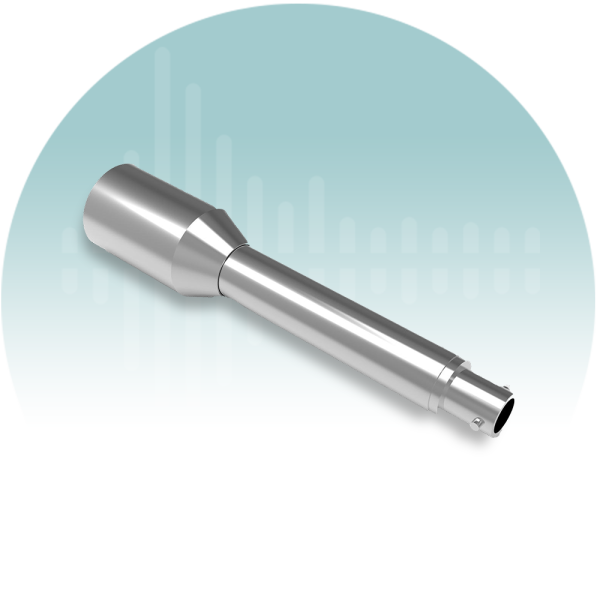

Piezoelectric pressure sensor kits PHT2121
| DATASHEET PLACID PHT2121 | |
| TECHNICAL INDEX | |
| Sensitivity (±15%) | 725 mV/kPa |
| Resonant Frequency | ≥40 kHz |
| Maximum Pressure (dynamic) | 68.9 kPa |
| Power Supply | IEPE (2 ~ 20mA) |
| Typical Working Current | 4 mA |
| WorkTemp | -40 ~ 120 ℃ |
| Output Interface | BNC |
| Weight | 94 g |

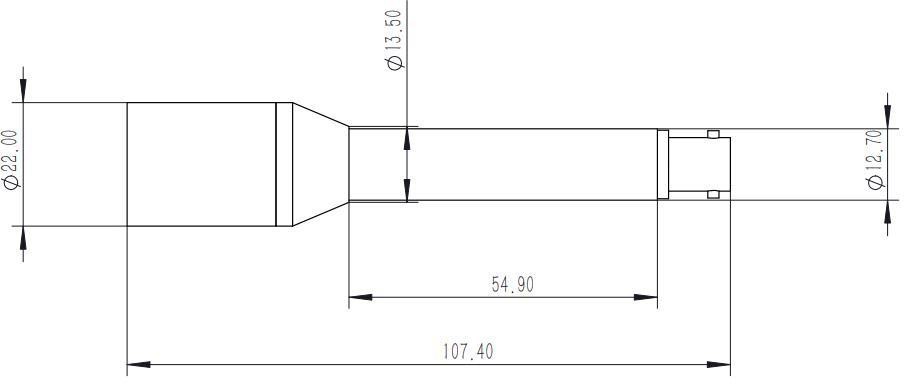

Structural Dimension

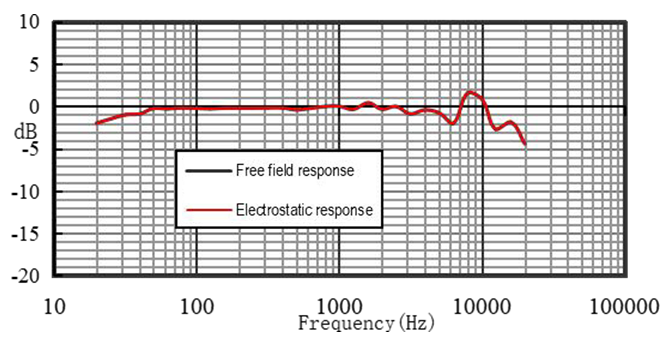

TYPICAL FREQUENCY RESPONSE CURVE
Please Click and Download this product datasheet for further information
