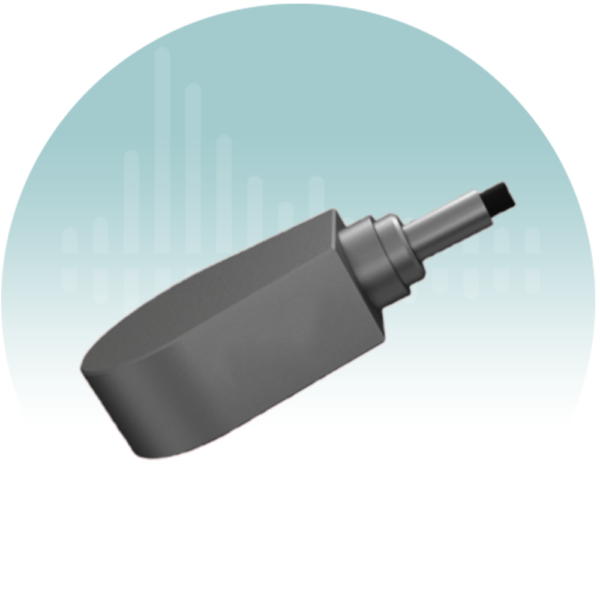

PLACID Accelerometer PLV 1010 02C single axis
SINGLE AXIS SIDE-EXIT CONNECTOR
Basics
The PLACID PQV 1010 02C is a multi-purpose IEPE accelerometer.
Connectivity
The PLACID PLV 1010 02C is an IEPE powered accelerometer. As the output impedance of our IEPE accelerometers is < than 100 Ohm, no special low-noise cable are required.
Uses
The PLACID PLV 1010 02C is used for all forthcoming vibration measurements where only a single-axis signal is required
Individual calibration
All PLACID accelerometers are being calibrated in a controlled laboratory environment using traceable calibration equipment complying with ISO17025 standards.
We recommend that all PLACID accelerometers are re-calibrated every year to guarantee an optimized usage.
PLACID Traceable Calibration is performed by our qualified staff and under controlled conditions according to the procedures and standards such as ISO17025.
Quality
All PLACID accelerometers are made of high-quality materials that will ensure long stability and durability, even in harsh condition. PLACID offers 2 years warranty against defective materials and workmanship.
All our accelerometers are made from Stainless steel.
| Datasheet PLACID PLV 1010 02C Accelerometer | ||
| General Characteristic | ||
| Measurement Range(g) | 0.5 to 11000 Hz | |
| Measuring Axis(single/triaxial) | Single | |
| Voltage Sensitivity(±5%) | 10 mv/g | |
| Maximum Acceleration | ±500 g | |
| Shock (OverloadLimit) | 5000 g pk | |
|
Frequencyresponse |
±5% | 10000 Hz |
| ±10% | 11000 Hz | |
|
Amplitude Response |
±5% | 10000 Hz |
| ±10% | 11000 Hz | |
| Resonance Frequency | ≥59 kHz | |
| Non-Linearity | 1% | |
| Temperature Range | -50 to +120℃ | |
| Transverse Sensitivity | ≤5% | |
| Output Impedance | ≤100 Ω | |
| Output BiasVoltage | 8-12 VDC | |
| Grounding | Cable shieldinglayer | |
| Sensing elements | Piezoelectric ceramics | |
|
Sensing Geometry |
11 mm x 8.5 mm x 5.1 mm (shear) | |
| Datasheet PLACID PLV 1010 02C Accelerometer | |
| Power Requirement | |
| Excitation Voltage(V) | Typical 24 VDC |
| Constant CurrentExcitation | Typical 4 mA |
| Supply Voltage(Unloaded) | 20 – 30 VDC |
| Constant CurrentSupply | 2 – 20 mA |
| Physical Characteristics | |
| Housing Material | Titanium Alloy |
| Sealing | Laser Welding IP68 |
| Weight | 1 gram |
| ElectricalConnector | Removal cable M3 to 10 – 32 cable |
| Electrical ConnectionPosition | Side |
