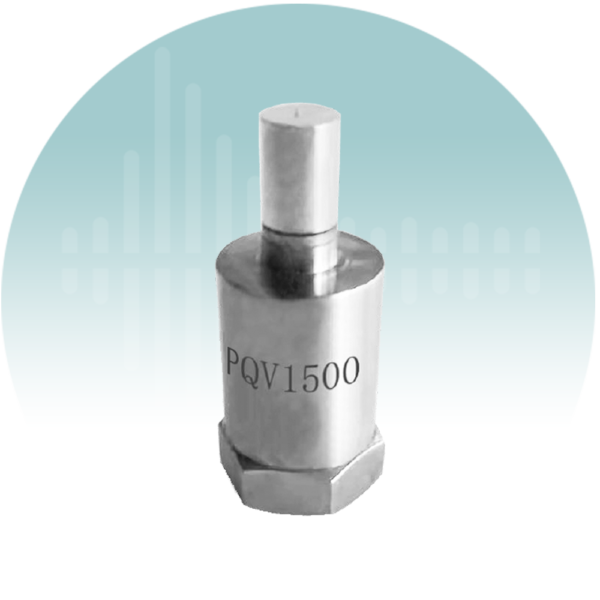

PLACID Accelerometer PQV 1500T single axis

PLACID Accelerometer

The PLACID PQV 1500T is used for all forthcoming vibration measurements where only a 1-axis signal is required.

  • Frequency Range 0.5 – 10000 Hz
  • Measurement Range+/- 500 g
  • Nominal sensitivity 10 mV/g

Download PLACID PQV 1500T Accelerometer Datasheet

Compare

PLACID Accelerometer PQV 1500T

SINGLE AXIS ACCELEROMETERS

Basics
The PLACID PQV 1500T is a multi-purpose IEPE accelerometer.

Connectivity
The PLACID PQV 1500T is an IEPE powered accelerometer. As the output impedance of our IEPE accelerometers is between 100-300 Ohm, no special low-noise cable are required.

Uses
The PLACID PQV 1500T is used for all forthcoming vibration measurements where only a 1-axis signal is required.

Individual calibration

All PLACID accelerometers are being calibrated in a controlled laboratory environment using traceable calibration equipment complying with ISO17025 standards.
We recommend that all PLACID accelerometers are re-calibrated every year to guarantee an optimized usage.
PLACID Traceable Calibration is performed by our qualified staff and under controlled conditions according to the procedures and standards such as ISO17025.

Quality
All PLACID accelerometers are made of high-quality materials that will ensure long stability and durability, even in harsh condition. PLACID offers 2 years warranty against defective materials and workmanship.
All our accelerometers are made from Stainless steel.

DATASHEET PLACID PQV 1500T ACCELEROMETER

Performance
Measurement Range (g)+/- 500
Frequency range (Hz)0.5 – 10000 Hz
Sensitivity10 mV/g
Resonant Frequency35 kHz
Maximum lateral sensitivity ratio≤ 5% F.S
Environmental
Temperature range (Celsius)-40 – +120
Electrical


Excitation Voltage (V)

12 to 30 VDC

(Typical value:24 VDC)



Constant current excitation

2 to 20 mA

(Typical Value: 4 mA)

Output bias voltage8 to12 VDC
Output Impedance≤150 Ω
Physical
Sizehex 14 mm, height 28 mm
Mounting threadM5
Electrical connectorM5
Electrical connection PositionTop
Weight18g
