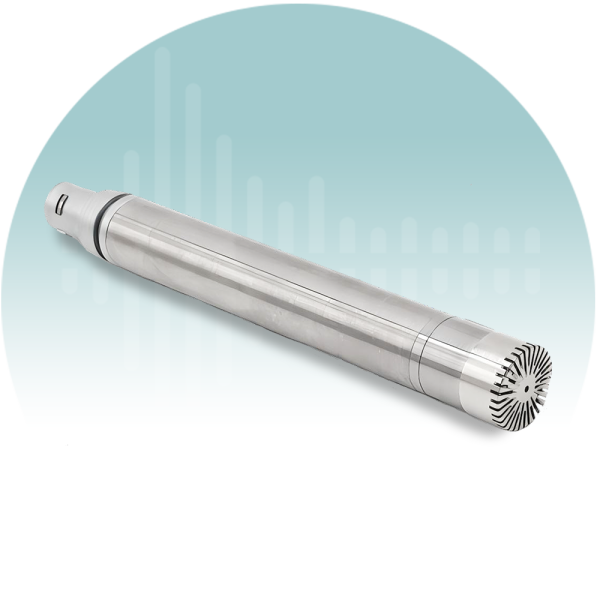

PLACID PMNV2125 low noise microphone kits
| DATASHEET PLACID PMNV2125 | |
| TECHNICAL INDEX | |
| Microphone Size | 1/2inch |
| Application | Free Field |
| Microphone Type | Externally Polarized |
| PolarizationVoltage | 200 V |
| Frequency Range (±1dB） | 20 ~ 8000 Hz |
| Frequency Range (±2dB） | 10Hz ~ 20kHz |
|
Dynamic Range |
9.5 dB(A) ~ 97 dB |
| Sensitivity (±2dB） | 800 mV/Pa |
| Output Impedance | ＜110 Ω |
| WorkTemp | -30 ~ 70 ℃ |
| Pressure Equalizing Mode | Rear Venting |
|
Applicable Standards For Microphones |
IEC 61094-4 WS2F |
| Power Supply | DC(28V-120V) |
| Output Interface | 7-PIN LEMO |
| Sizer | 12.7×110mm |
TYPICAL FREQUENCY RESPONSE CURVE
Please Click and Download this product datasheet for further information
