PLACID Accelerometer PQV10DAB
IEPE-TYPE SINGLE-AXIS PIEZOELECTRIC ACCELEROMETER
| DATASHEET PLACID ACCELEROMETER PQV10DAB | |
| PERFORMANCE | |
| Sensitivity(±10%) | 100 mV/g |
| Measurement Range | ±50 g |
| Frequency Response(±10%) | 0.5 ~ 10000 Hz |
| Resonant Frequency | 30 kHz |
| Non-Linearity | ≤1% |
| Transverse Sensitivity | ≤5% |
| ENVIRONMENTAL | |
| Maximum Shock | 1000 g pk |
| Work Temp | -40 ~ +120 ℃ |
| ELECTRICAL | |
| Excitation Voltage | 18 ~ 30 VDC |
| Constant Current Excitation | IEPE(2 ~ 10 mA) |
| Output Bias Voltage | 8 ~ 12 VDC |
| Output Impedance | <150 Ω |
| PHYSICAL | |
| Sensing Element | Piezoelectric Ceramic |
| Sensing Geometry | Isolated Shear |
| Housing Material | Stainless Steel |
| Dimension | 14 mm x 27.8 mm |
| Electrical Connector | M5 Top Output |
| Mounting Method | M5 |
| Weight | 18 g |
Schematic

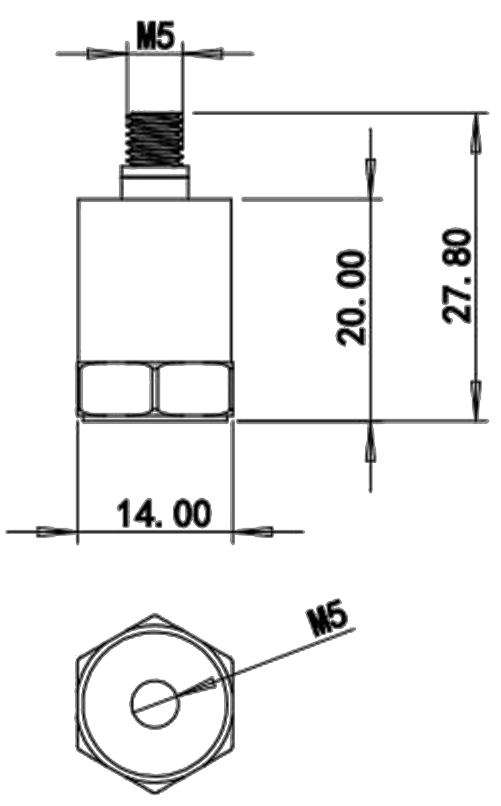

Dimensions in mm

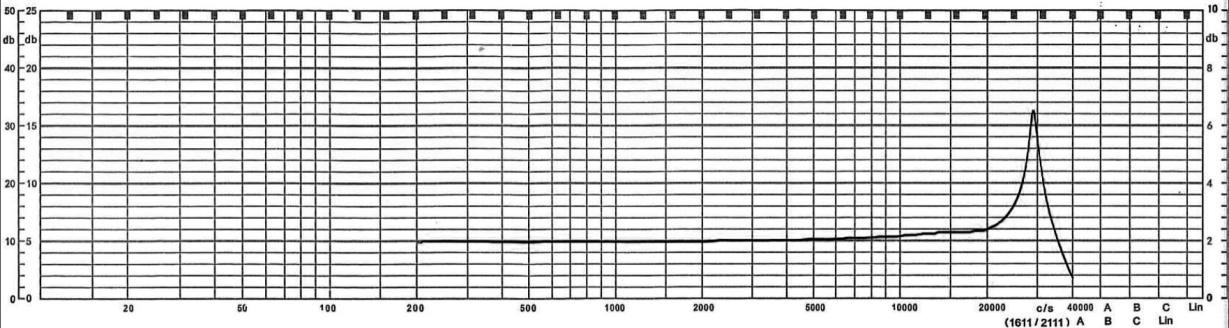

Typical frequency response
